NDT 1012MA
Wireless Portable FPD for Industrial NDT and Security Systems

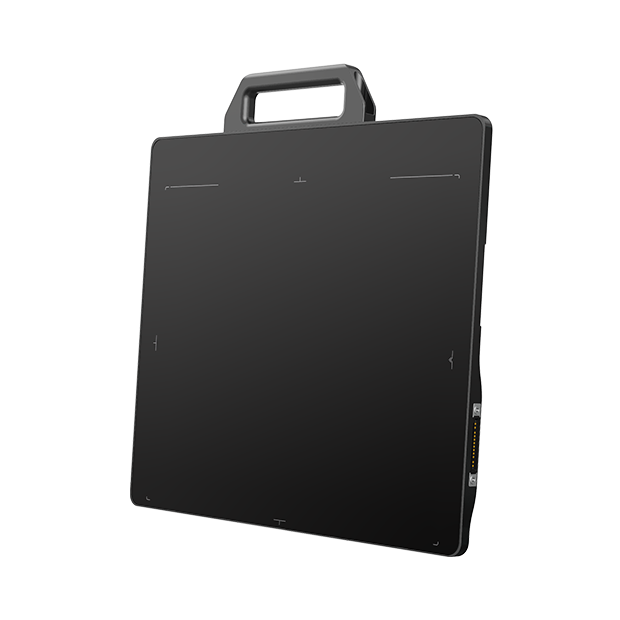

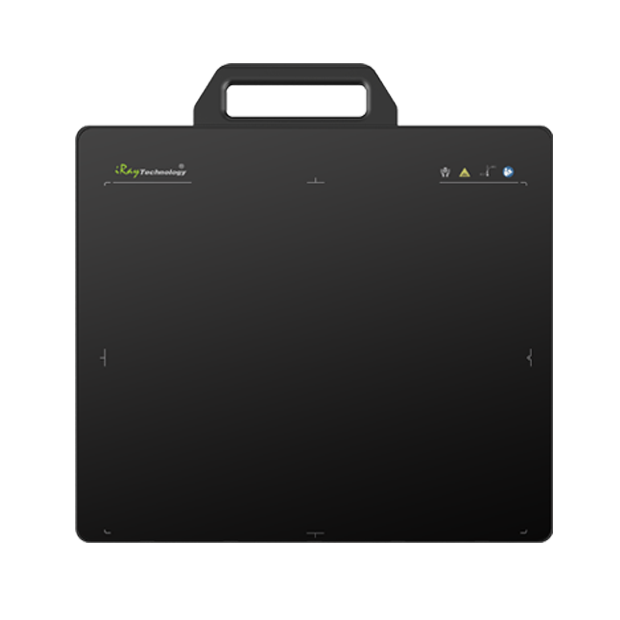

NDT 1012MA is a 10×12-inch wireless and portable amorphous silicon flat panel detector. The detector features a compact and industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. Data and signal communication is achieved either via a wired or a wireless interface. The iRay software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user tablet or workstation running the MS Windows operating system. With its exceptional image quality and reliability, the NDT 1012MA is an excellent choice for portable field inspection applications or IED/EOD based security scenarios.
Features
    • Proven radiation hard a-Si design
    • 25×30 cm² imaging area
    • 125 μm pixel pitch with 16-bit ADC for more image details
    • Up to 180 sec. X-ray exposure window
    • Rugged design, withstand 1m drop
    • Robust wired and 5G wireless data interface
    • Narrow dead space edge (< 7 mm)
    • 2.5 hours battery capacity
Technical Specifications
