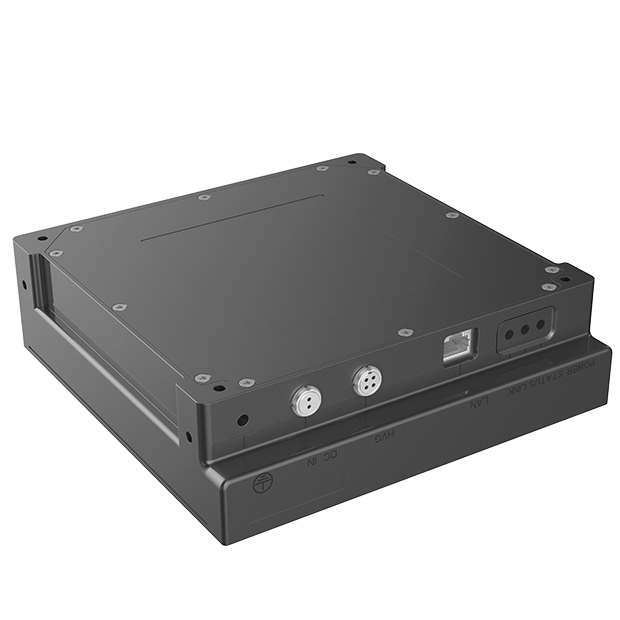

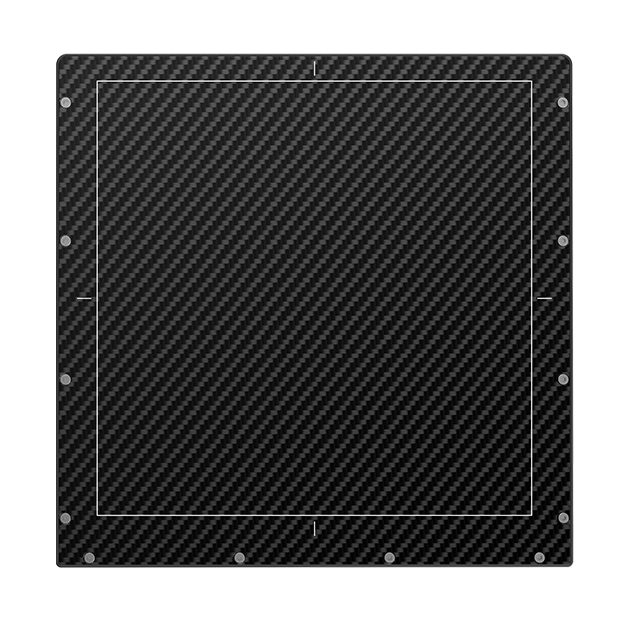

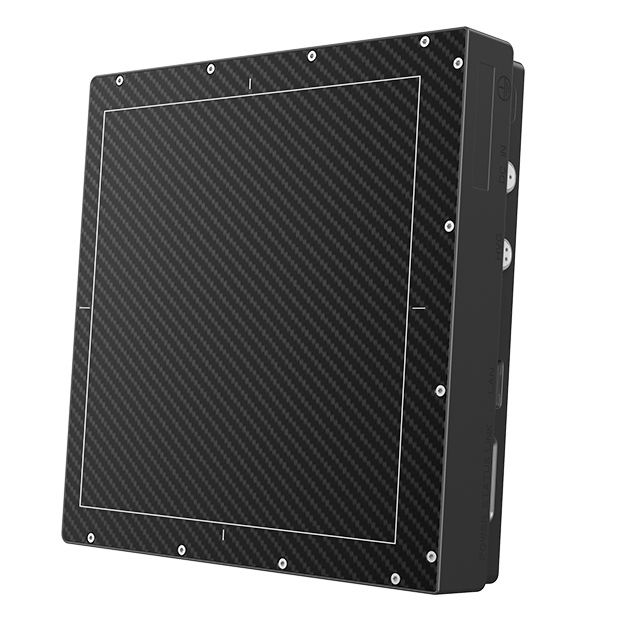

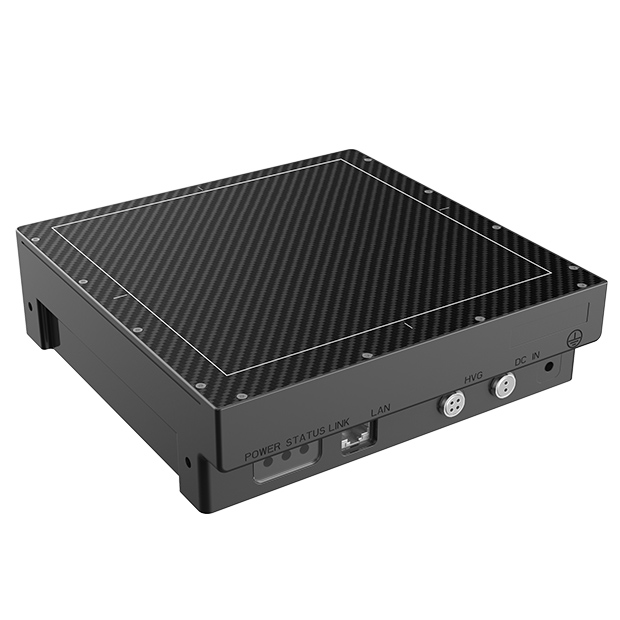

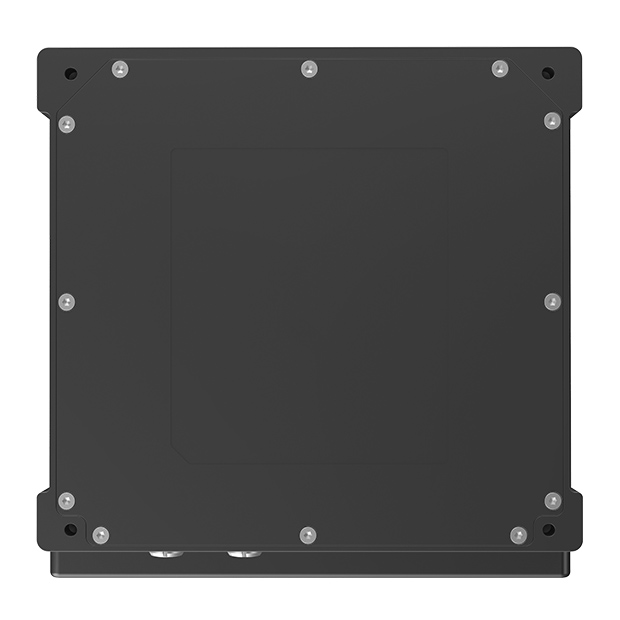

Jupi 0606X1
6×6-inch Dynamic Flat Panel Detector
Jupi 0606X1 is new generation, high-performance FPD developed with innovative TFT sensor technology for real-time imaging. The 6×6-inch low noise TFT image sensor has direct deposition CsI, which together with 16 bit read-out electronics and programmable ROIs, provides excellent low-dose imaging at frame rates up to 60 fps. With its outstanding image quality and reliability, it is an excellent choice for extra-oral CBCT and panoramic imaging.
Features
    • Innovative TFT image sensor provides low noise, high SNR with an extended dynamic range
    • 100 μm pixel pitch
    • Real-time imaging in full resolution at 20 fps and 2×2 at 60 fps
    • Pano imaging at 220 fps
    • Supports programmable ROI read-out
    • Switchable gain settings for variable sensitivity
    • Narrow shoulder edge distance of 10 mm
    • Gigabit Ethernet interface
    • Designed for medium FoV dental CBCT imaging
Technical Specifications
