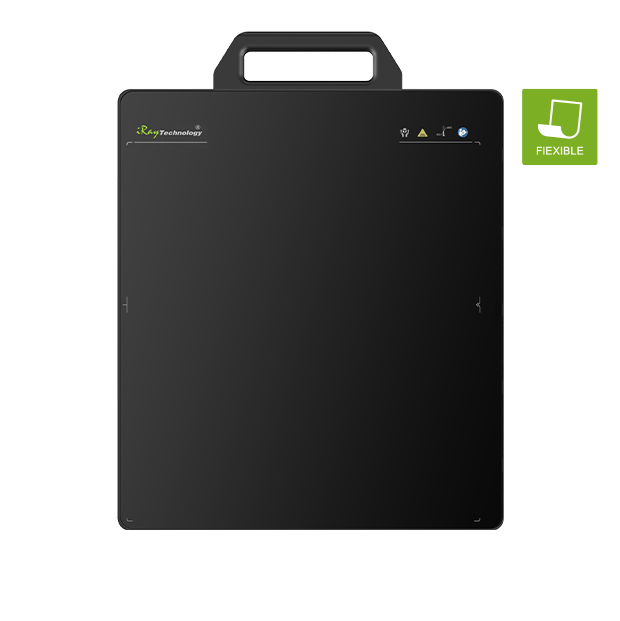

NDT 1417LA
14×17-inch Flat Panel Detector for Real-Time Imaging
NDT 1417LA is a 14×17-inch wireless and portable flat panel detector based upon iRay’s innovative and unbreakable flexible sensor technology. The detector features a compact and industrially rugged design, which provides high radiation resistance, wide environmental capabilities, and overall high reliability. Data and signal communication is achieved either via a wired or a wireless interface. The iRay software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on an end-user tablet or workstation running the MS Windows operating system. With its exceptional image quality and reliability, the NDT 1417LA is an excellent choice for industrial applications such as portable field inspection, or EOD/IED based security scenarios.
Features
    • Innovative flexible a-Si sensor technology
    • 35×43 cm² imaging area
    • Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
    • Up to 180 sec. X-ray exposure window
    • Robust wired and 5G wireless data interface
    • Thin and lightweight design with narrow dead space edge (7 mm)
    • More than 5 hours battery capacity
Technical Specifications
