NDT 1717M3

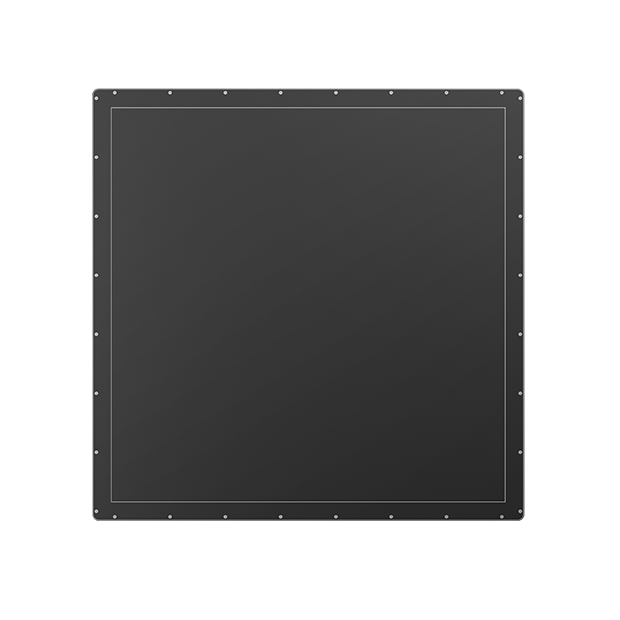

17×17-inch NDT Dynamic Flat Panel Detector
17×17-inch NDT Dynamic Flat Panel Detector
NDT 1717M3 is a 17-inch radiation hard a-Si FPD for real-time imaging. The detector supports frame rates up to 5 fps, and the 16 bit ADC provides high dynamic range and excellent contrast-to-noise ratio. Data communication is accomplished by Gigabit Ethernet, and the iRay software SDK provides support for detector calibration, configuration, image acquisition, pre-processing and viewing on a workstation running the MS Windows operating system. The NDT 1717M3 is suitable for industrial NDT applications such as in casting inspections and SMD counting.
Features
-
Proven radiation hard a-Si sensor technology
-
43×43 cm² imaging area
-
Dynamic imaging in full resolution at 5 fps, 2×2 at 20 fps and 3×3 at 30 fps
-
Gigabit Ethernet interface without image loss
-
Energy range from 40 kV ~ 160 kV
-
IP43 ingress protection
-
Easy software and system integration
-
Multiple programmable gain levels
-
Programmable ROI
