Satu 6416S
High-Energy X-Ray Linear Array Detector

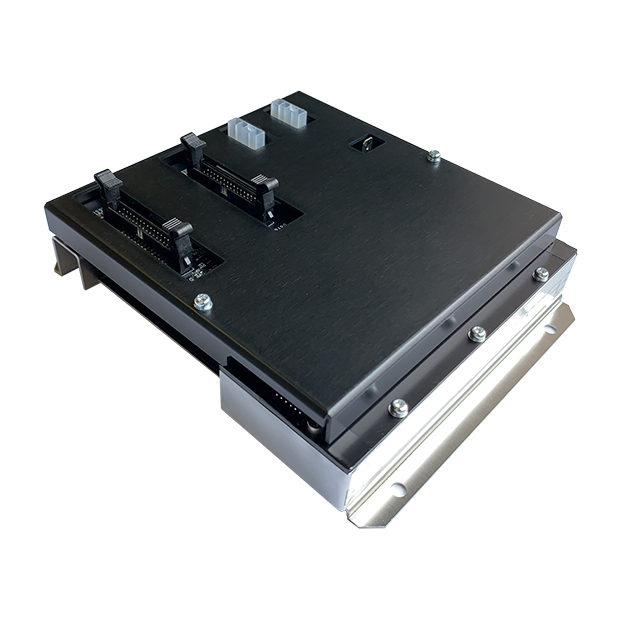

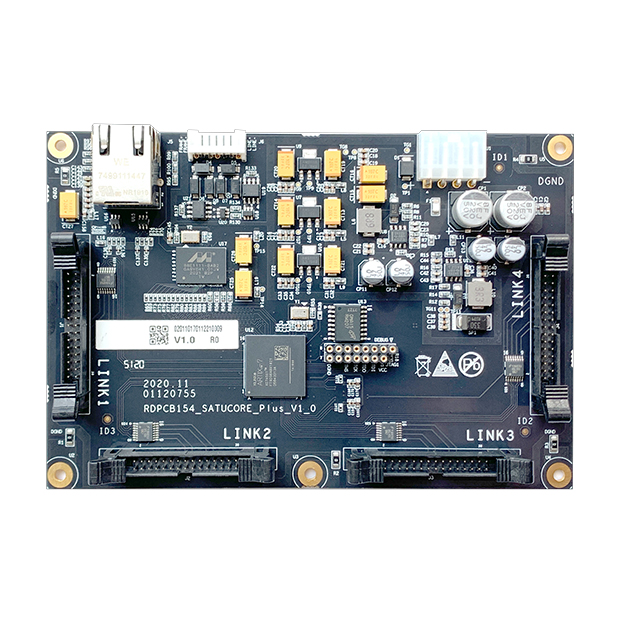

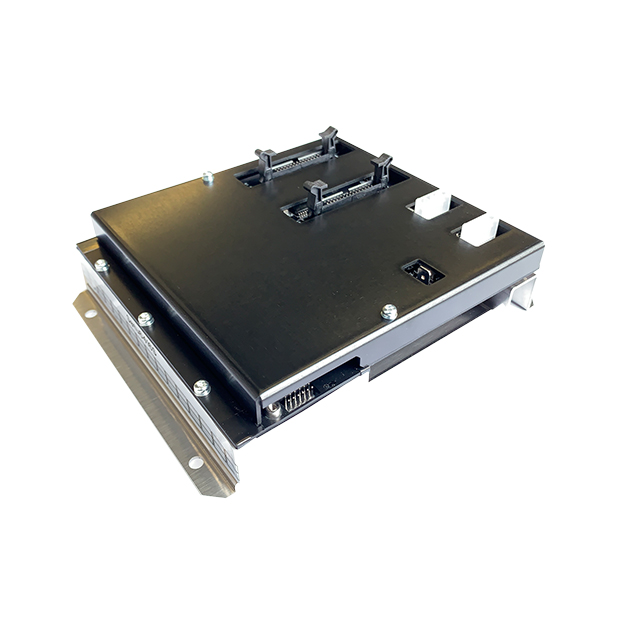

Satu 6416S is a linear detection array module system for high-energy X-ray imaging. The detector module consists of CdWO4 crystal scintillator and photodiode array. Multiple boards can be connected together. This creates a detector array of a certain length in order to meet the imaging requirements of various applications requiring a different number of imaging channels. Satu 6416S can be used for the inspection of vehicle, train, containers and cargoes.
Features
    • X-ray energy range from 450kVp to 15Mev
    • Pixel pitch options :2.3mm & 4.6mm
    • Capable of integration times :320μs-1s,fast scanning speed to support high through-put systems
    • Up to 20-bit image data
    • Wide sensitivity range from 3 pF to 87.5 pF
    • Gigabit Ethernet interface for firmware upgraded
    • SDK support in Windows (32-bit & 64-bit) and Linux
    • LINAC and Betatron compliant
