Providing a Total Solution for all your X-Ray System needs
Technical Parameters
| Mars 1417X | |||
| Detector Technology | Amorphous Silicon | Full Image Time (s) | 3 |
| Scintillator | CsI | Dimension (mm) | 384 x 460 x 15 |
| Active Area (inch) | 14 × 17 | Weight (kg) | 3.0 |
| Pixel Matrix | 3500 × 4300 | Static Loading (kg) | 300 |
| Pixel Pitch (μm) | 100 | Ingress Protection | IP56 |
| Spatial Resolution (lp/mm) | 4.3 | Operating Temperature (℃) | 10~35 |
| AD Conversion (bit) | 16 | Storage & Transport Temperature with Package(℃) |
-20~55 |
| Battery Autonomy (h) | 8.5 | Operating Humidity （% RH） | 5~90 (Non-Condensing) |
| WIFI | 2.4G and 5G IEEE802.11 a/b/g/n/ac |
Storage & Transport Humidity with Package （% RH） | 5~95 (Non-Condensing) |
| Trigger Mode | AED (optional) / Software | |
|
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.

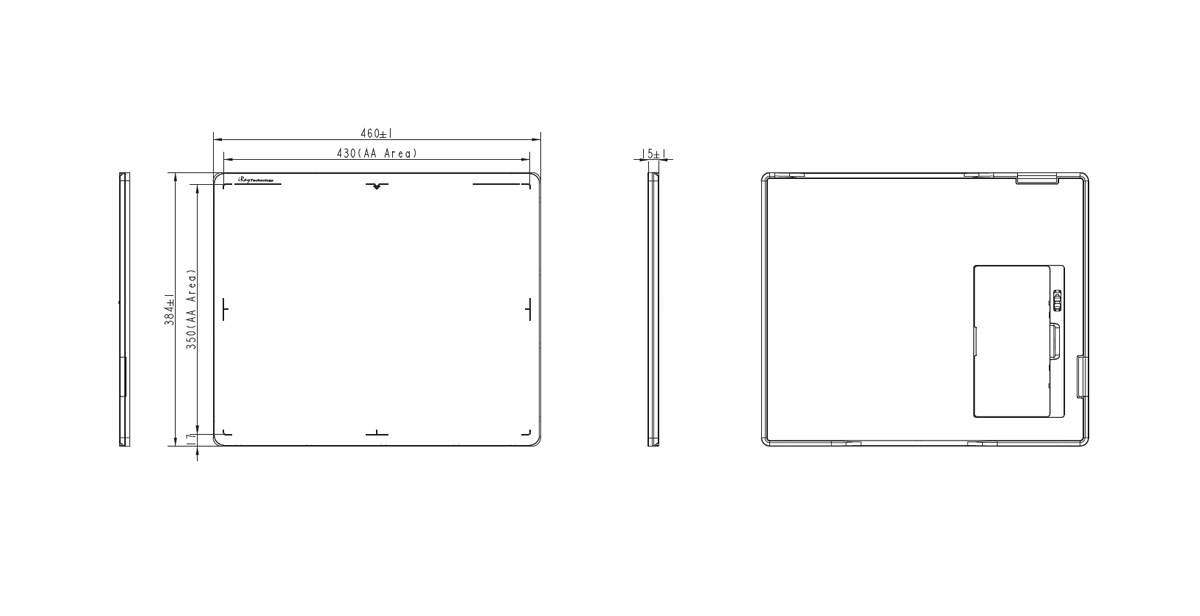

Dimensions
