Technical Parameters
Venu 1717X
Detector Technology   Amorphous Silicon  Trigger Mode AED (optional) / Software / Prep
Scintillator CsI Preview Image Time (s) 3
Active Area (inch) 17 × 17 Full Image Time (s) 5
Pixel Matrix 3072 × 3072 Dimension (mm) 460 × 460 × 15
Pixel Pitch (μm)  139 Weight (kg) 4
Limiting Resolution (lp/mm) 3.4 Operating Temperature (℃) 5~35
AD Conversion (bit) 16 Storage & Transport
Temperature with Package (℃)
-10~55
Power Dissipation (W) 30 Operating Humidity (% RH) 30~80 (Non-Condensing)
Data Interface GigE Storage & Transport Humidity with Package (% RH) 10~90 (Non-Condensing)



* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

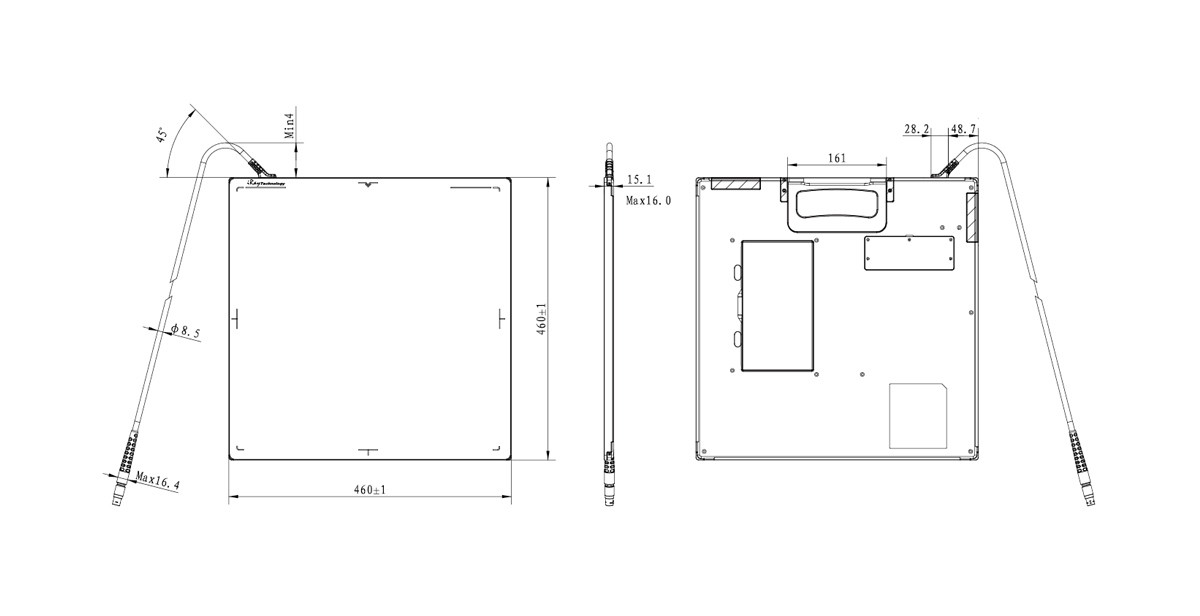

Dimensions
