Technical Parameters
| NDT 0505J | |||
| Detector Technology | a-Si TFT | Radiation Hardness (Gy) | 10000 |
| Scintillator | Csl / DRZ-Fine | Ingress Protection | IP65 |

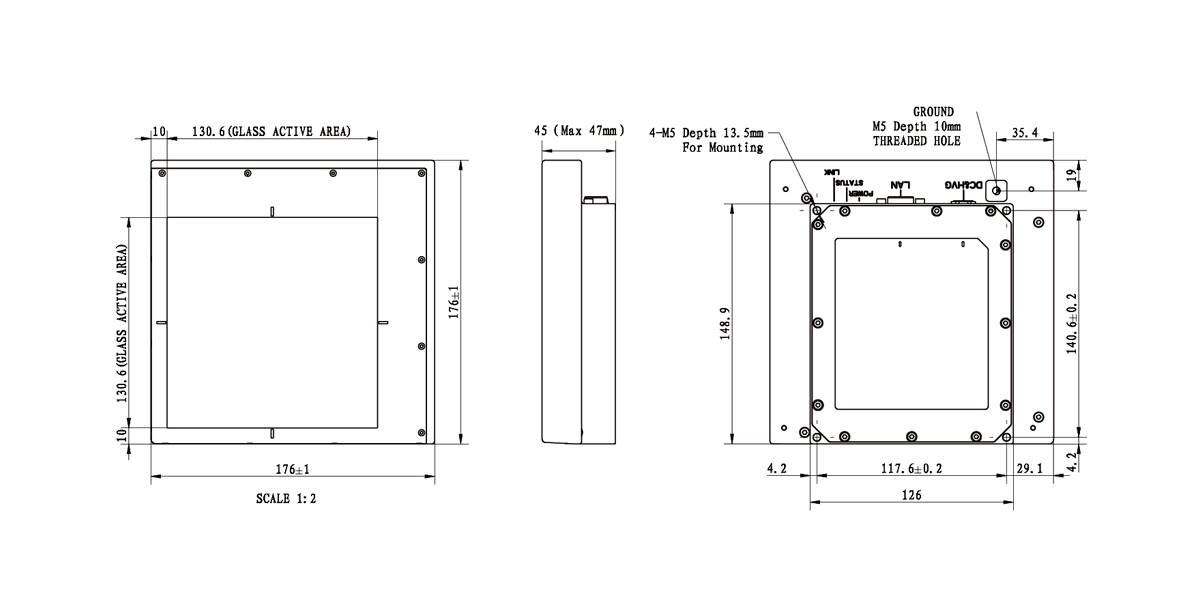

| Pixel Pitch (μm) | 85 | Dimensions (mm) | 176 × 176 × 47 |
| Pixel Matrix | 1536 × 1536 | Car Charger | No |
| Active Area (mm²) | 130 × 130 | Weight (kg) | 2.1 / 3.5 |
| Spatial Resolution (lp/mm) | 5.8 | Power Dissipation (W) | 9 |
| AD Conversion (bit) | 16 | Operating Temperature (℃) | 10 ~ 40 |
| Frame Rate (fps) | 20 (1×1) 40 (2×2) |
Storage & Transport Temperature with Package (℃) | -10 ~ 55 |
| Data Interface | GigE | Operating Humidity (% RH) (Non-Condensing) |
20 ~ 90 |
| Trigger Mode | Continuous and Pulsed | Storage & Transport Humidity with Package (% RH) (Non-Condensing) |
10 ~ 90 |
| X-ray Energy Range | 40 kV ~ 160 / 320 kV | ||
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.
