Technical Parameters
| Gemini-3 | |||
| Output Power | 3.5 kW Peak / 600 W Average | Focal Spot Size | 0.6 / 1.5 |
| Output Voltage Range (kV) | 40~125 | Anode Target Angle | 12° |
| Output Current Range (mA) | 0.2 ~ 20 (small focal) 5 ~ 50 (big focal) |
Total Equivalent Filter | 0.6 mm Al |
| Tank Dimension (mm3) | 310 × 130 × 205 | Interface | RS232 / CAN |
| Tank Weight (kg) | 11.6 | Software | Standalone service tool |
| Inverter Dimension (mm) | 300 × 249 × 90 | Trigger Mode | External Electrical Signal: Separate preparing for radiography and fluoroscopy Sharable exposure for both mode |
| Inverter Weight (kg) | 3.7 | Max. Tank Heat Storage | 750 kHU / 536 kJ |
| Tube Voltage Ripple | ≤ 4% | Tank Heat Disputation (W) | 150 |
| Tube Voltage Accuracy | ± 5% | Operating Temperature (℃) | 0~40 |
| Tube Voltage Rising Time (ms) | 2 | Storage & Transport Temperature with Package (℃) | -20~70 |
| Tube Current Accuracy | ± 10% | Operating Humidity (% RH) | 5 ~ 95 (Non-Condensing) |
| Mains Input | 220 VAC / 50~60 Hz | Storage & Transport Humidity with Package (% RH) | 5 ~ 95 (Non-Condensing) |
| Auxiliary Input | 24 VDC | |
|
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.

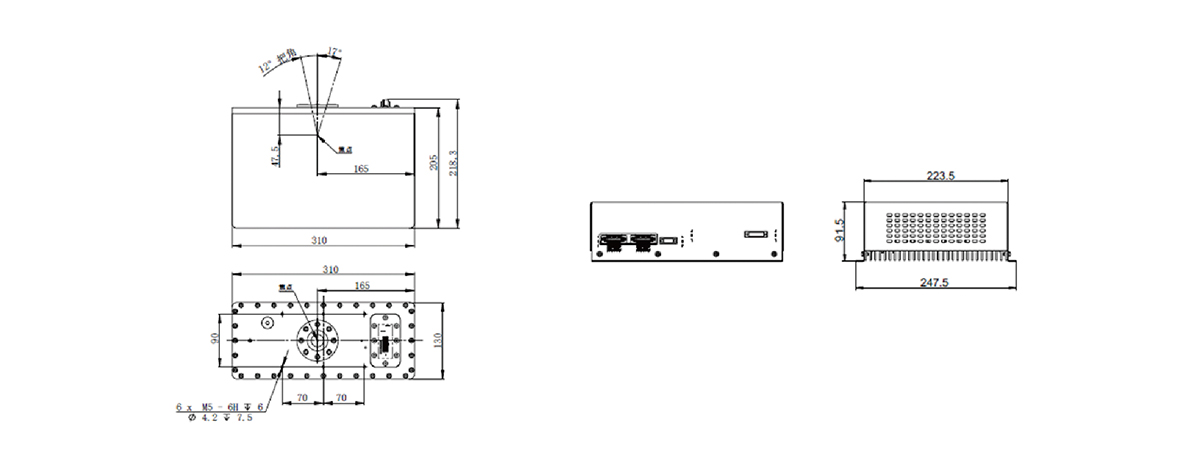

Dimensions
