Technical Parameters
CETUS R02
Switching Frequency 70 - 250 kHz
Mains Power Requirement 208 – 240 VAC,± 10%,3 Phase; 50 / 60 Hz;
Momentary Power Consumption: Consumption: 55 kVA (32kW)/70 kVA (40kW)/85 kVA (50kW)
Aux. Power Requirement 100 - 240 VAC,± 10%,1 Phase; 50 / 60 Hz; < 5 A
Radiographic Output Performance Nom. Power: 32kW/40kW/50kW
kV Range: 40 - 150 kV, variable in 1kV step
mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW)/10 –630 mA (50kW)
ms Range: 1 - 10000ms
mAs Range: 0.1 - 500 mAs/0.1 - 630 mAs
Serial Radiographic Output Performance (Optional) kV Range: 40 - 150 kV, variable in 1kV step
mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW)/10 –630 mA (50kW)
Pulse Per Second: 1 - 30
Pulse Width: 2 – 500 ms, not exceed 50% duty cycle, follow R’20 series
Rotor Starter: Low Speed Starter
Dimension (W x D x H) 454 mm x 359.5 mm x 461.5 mm
Net Weight 40kg
Communication Interface  RS - 232; CAN (Optional)
Techniques mA/ms;mAs;mAs/ms;AEC;AEC/mA;APR



* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

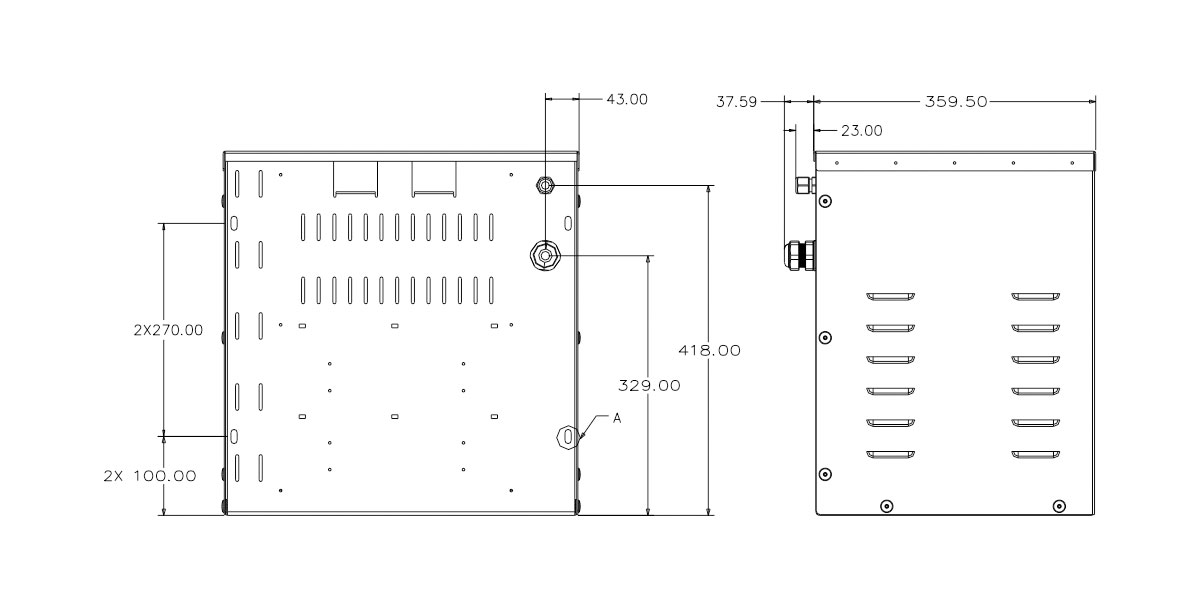

Dimensions
