Technical Parameters
| CETUS R03 | |||
| Switching Frequency | 70 - 250 kHz | ||
| Mains Power Requirement | 208 – 240 VAC，± 10%，1 Phase; 50 / 60 Hz; Momentary Power Consumption: 55 kVA (32kW)/70 kVA (40kW) |
||
| Aux. Power Requirement | 100 - 240 VAC，± 10%，1 Phase; 50 / 60 Hz; < 5 A | ||
| Radiographic Output Performance | Nom. Power: 32kW/40kW kV Range: 40 - 150 kV, variable in 1kV step mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW) ms Range: 1 - 10000ms mAs Range: 0.1 - 500 mAs/0.1 - 630 mAs |
||
| Serial Radiographic Output Performance (Optional) | kV Range: 40 - 150 kV, variable in 1kV step mA Range: 10 –400 mA (32kW)/10 –500 mA (40kW) Pulse Per Second: 1 - 30 Pulse Width: 2 – 500 ms, not exceed 50% duty cycle, follow R’20 series Rotor Starter: Low Speed Starter |
||
| Dimension (W x D x H) | 454 mm x 359.5 mm x 461.5 mm | ||
| Net Weight | 41kg | ||
| Communication Interface | RS - 232； CAN (Optional) | ||
| Techniques | mA/ms；mAs；mAs/ms；AEC；AEC/mA；APR | ||
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.

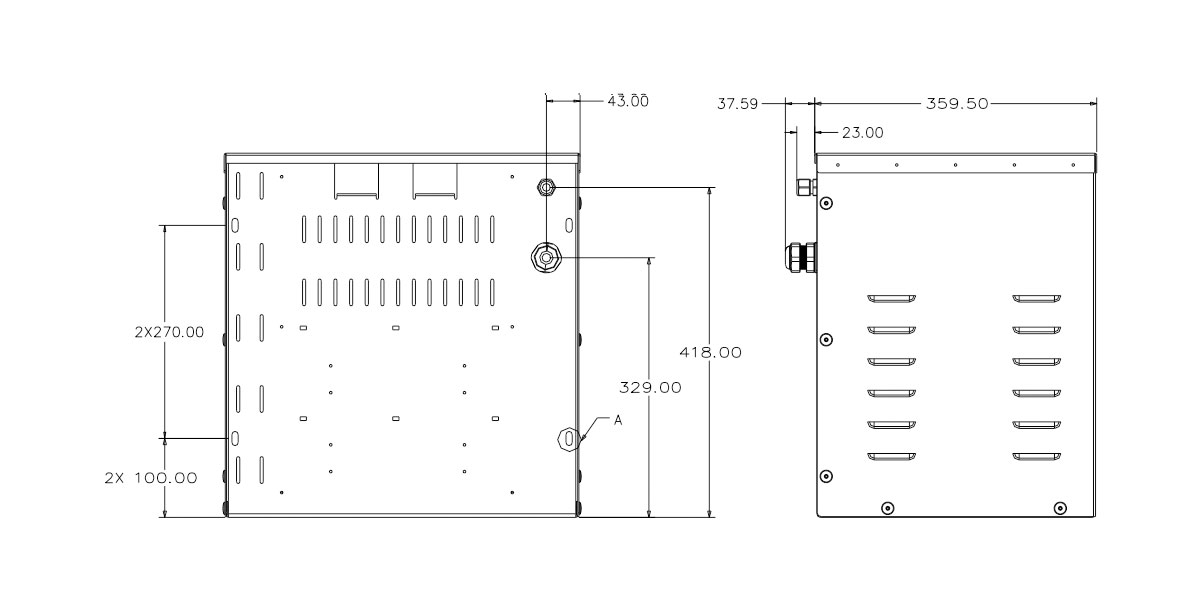

Dimensions
