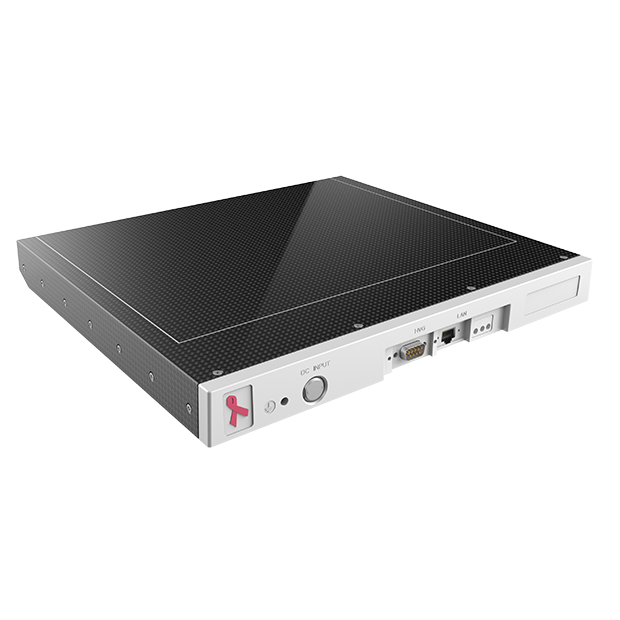

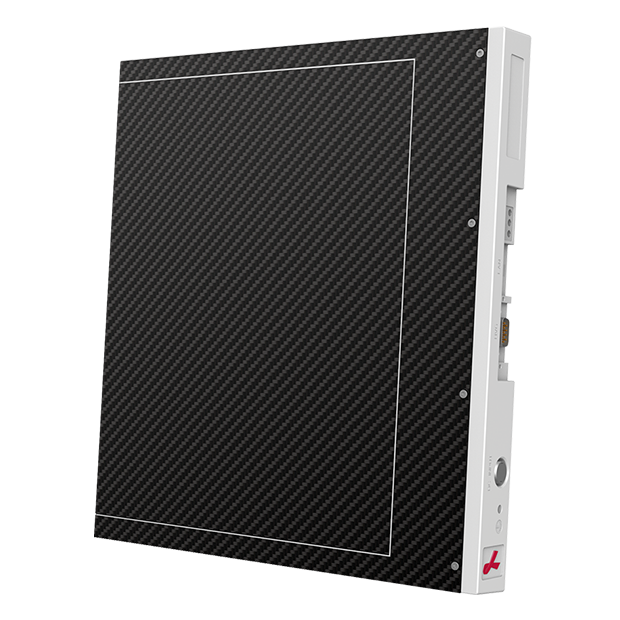

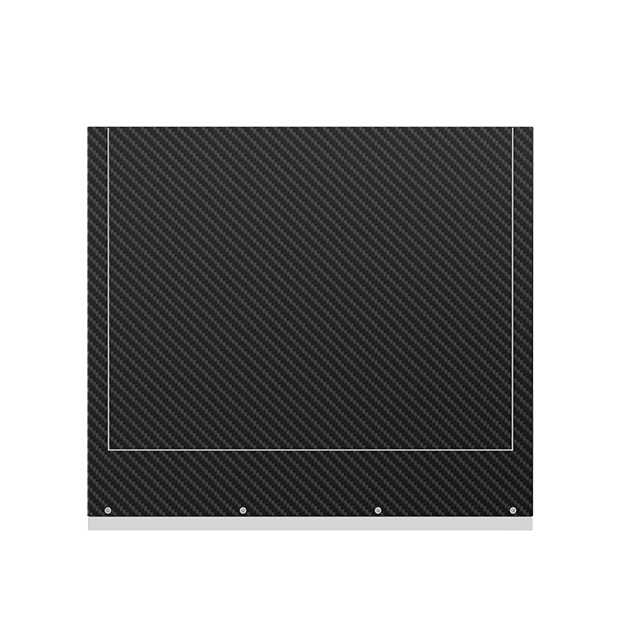

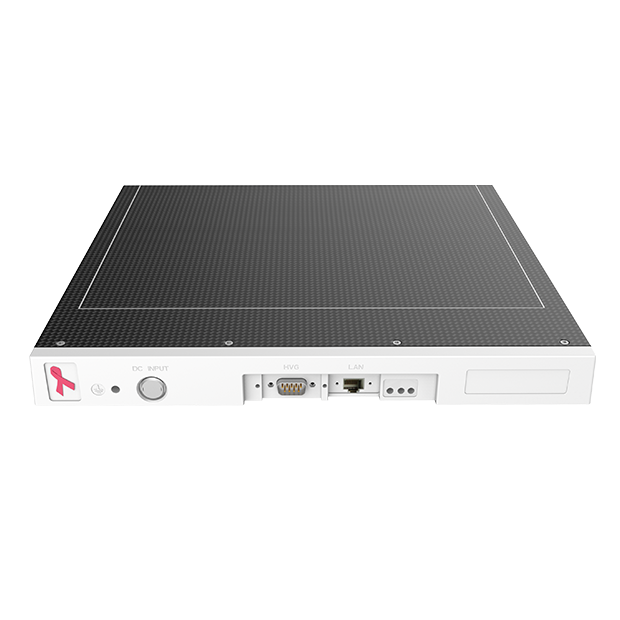

Mammo 1012F
10×12-inch mammographic Flat Panel Detector
Mammo 1012F is a high-performance 10×12-inch static FPD. It has a large 239 mm × 300 mm imaging area, and a narrow, 3 mm, chest wall distance. The detector provides a large dynamic range, high signal-to-noise ratio, reliable data transmission, and low power consumption. The Mammo 1012F is designed for FFDM applications.
Features



    • 85 μm pixel pitch with 16-bit ADC
    • Low 1st frame lag of 1.5%
    • Wide dynamic range
    • High signal-to-noise ratio, excellent image quality
    • Lower power consumption
    • Reliable data interface
Technical Specifications
