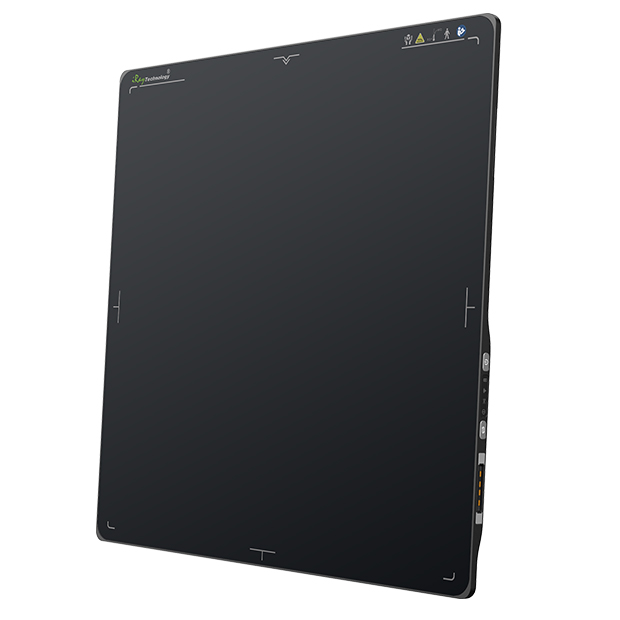

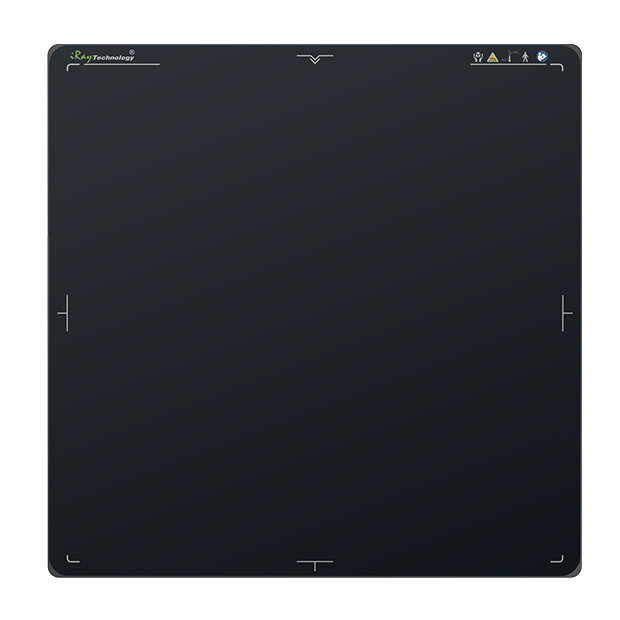

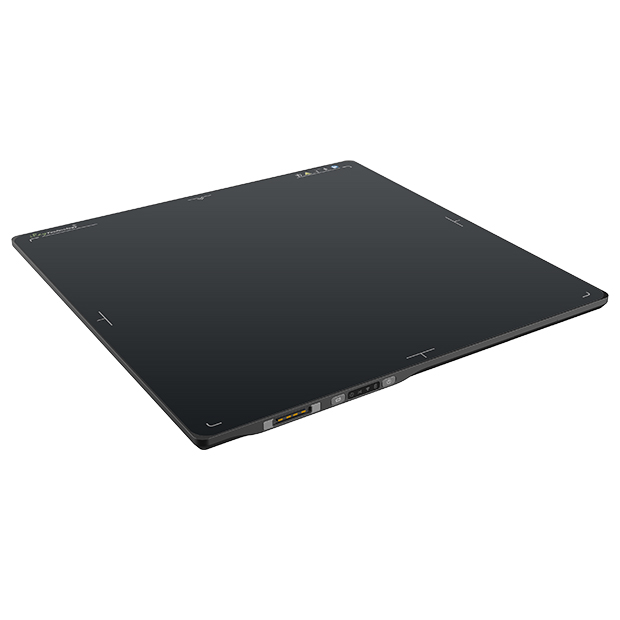

Mars 1717X
17×17 Wireless a-Si Flat Panel Detector
Mars 1717X is a best in class 17×17-inch wireless, cassette-sized flat panel detector for radiographic imaging. It features a 100 μm pixel pitch with direct deposition CsI. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable,low power intelligent automatic exposure detection (iAED). With its exceptional image quality the Mars 1717X is an excellent choice for high-end DR systems.
Features
    • Wireless cassette detector per ISO 4090, fits in bucky
    • Full AED control, exposure at any time
    • Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
    • Large capacity battery design, with 8 hours battery life
    • Lightweight design with IP56 ingress protection
    • Supports a fast workflow for a better user experience
    • Direct deposition Csl, with excellent DQE at all frequencies
