Technical Parameters
Mars 1717X
Detector Technology Amorphous Silicon Full Image Time (s)  3
Scintillator CsI Dimensions (mm3) 460 × 460 × 15
Active Area (inch) 17 × 17 Weight (kg)                                         3.4
Pixel Matrix 4267 × 4267 Static Loading (kg)                     300 Uniformly
Pixel Pitch (μm) 100 Ingress Protection IP56
Spatial Resolution (lp/mm) 4.3 Operating Temperature ()                                                   10~35
AD Conversion (bit) 16 Storage & Transport Temperature with Package ()                             -20~55
Battery Autonomy (h) 8 Operating Humidity % RH(Non-Condensing) 5~90
WIFI 2.4G and 5G,
IEEE802.11 a/b/g/n/ac
Storage & Transport Humidity with Package % RH (Non-Condensing) 5~95
Trigger Mode AED (optional) / Software



* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

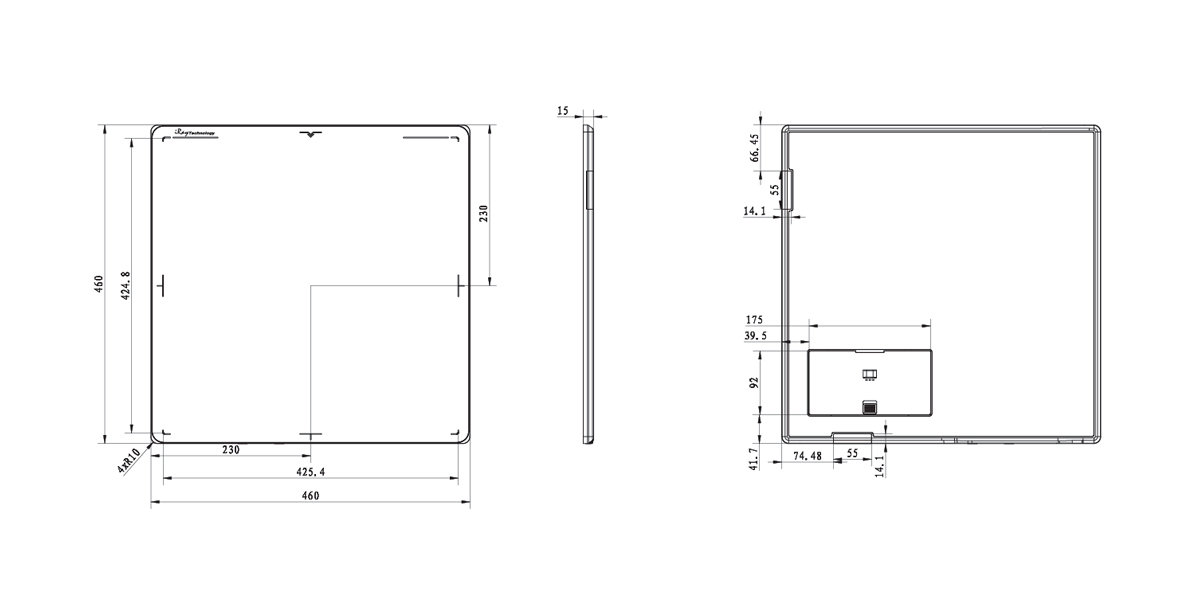

Dimensions
