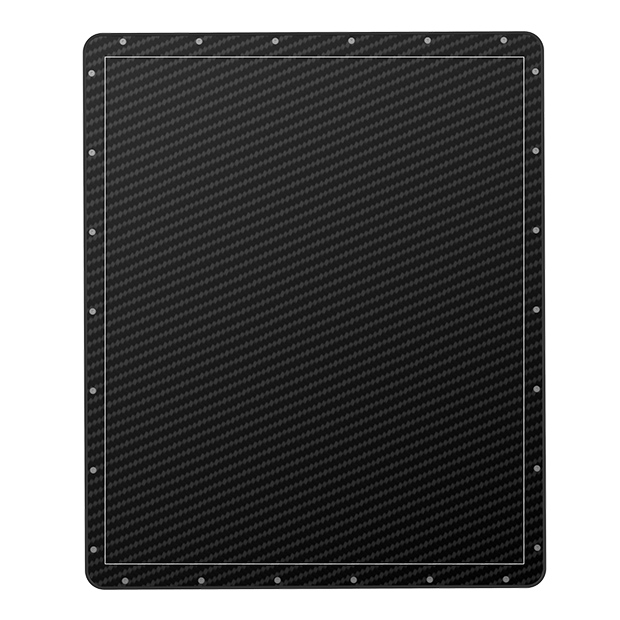

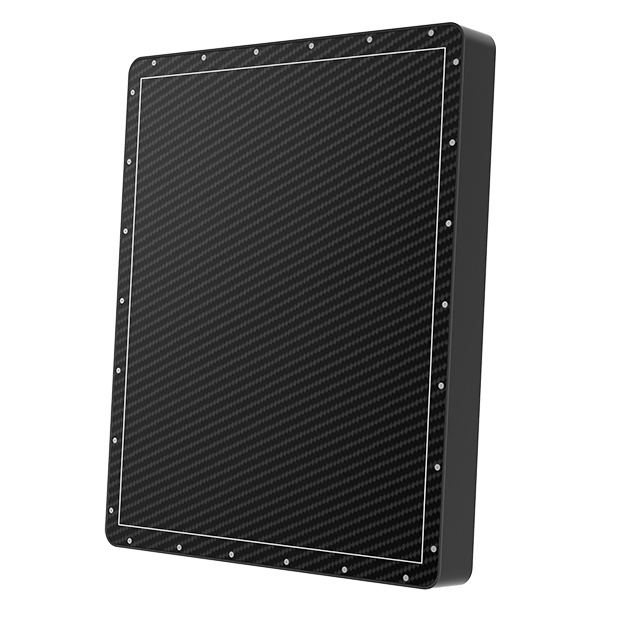

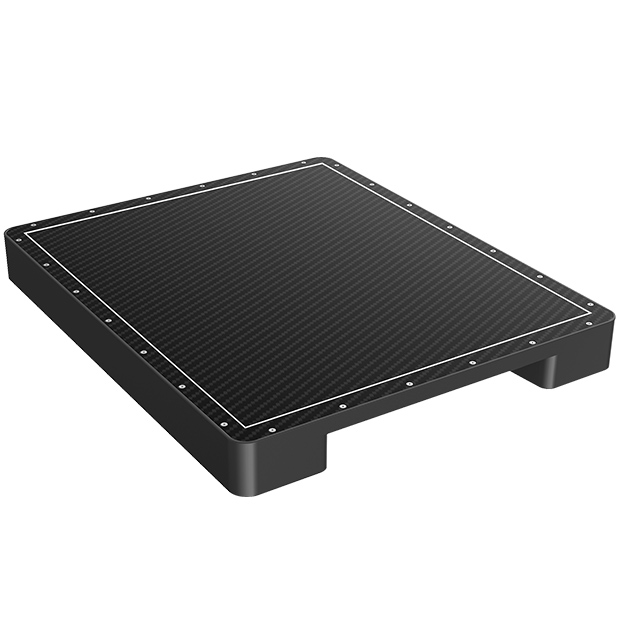

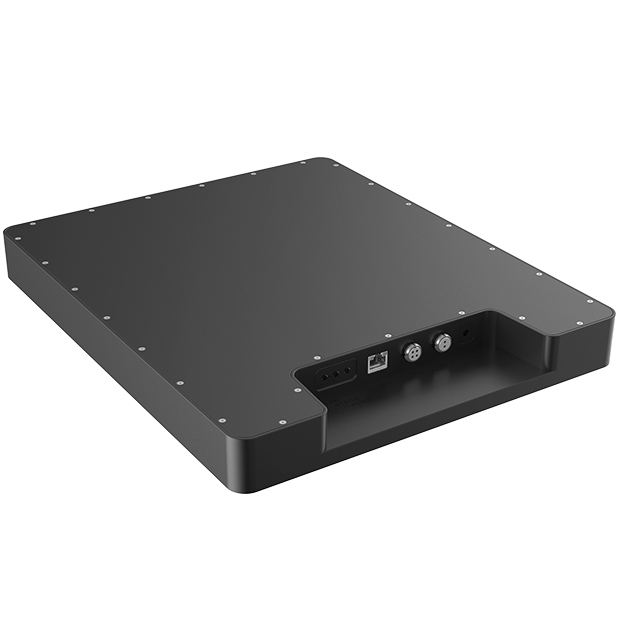

Jupi 1012X
10×12-inch Dynamic Flat Panel Detector
10×12-inch Dynamic Flat Panel Detector
Jupi 1012X is new generation, high-performance FPD developed with innovative TFT sensor technology for real-time imaging. The 10×12-inch low noise TFT image sensor has direct deposition CsI, which together with 16 bit read-out electronics and programmable ROIs, provides excellent low-dose imaging at frame rates up to 80 fps. With its outstanding image quality and reliability, it is an excellent choice for large size extra-oral CBCT, cephalometric, and panoramic imaging applications.
Features
- Innovative TFT image sensor provides low noise, high SNR with an extended dynamic range
- 25×30 cm² imaging area
- 100 μm pixel pitch with 16-bit ADC
- Real-time imaging in full resolution at 40 fps and 2×2 at 80 fps
- Pano imaging at 300 fps
- Supports programmable ROI read-out
- Switchable gain settings for variable sensitivity
- Narrow shoulder edge distance of 10 mm
- Designed for large FoV dental CBCT imaging
