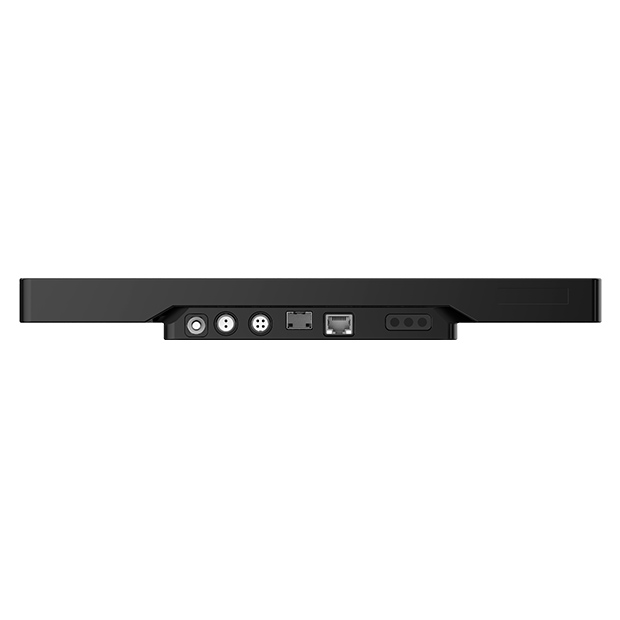

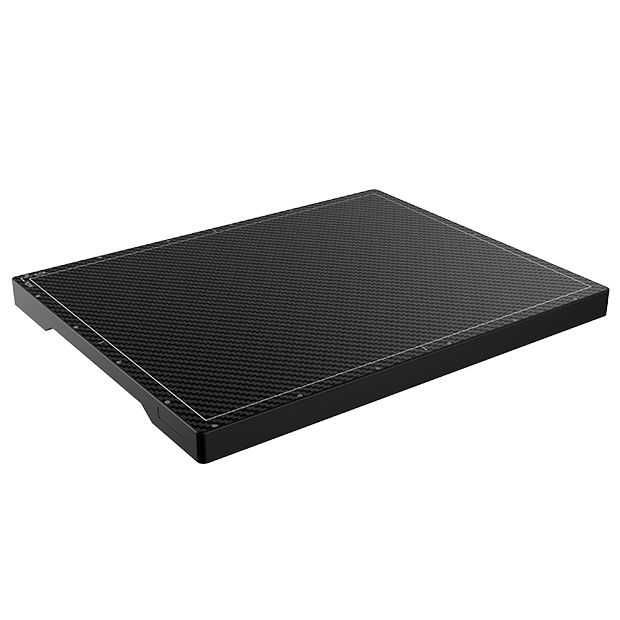

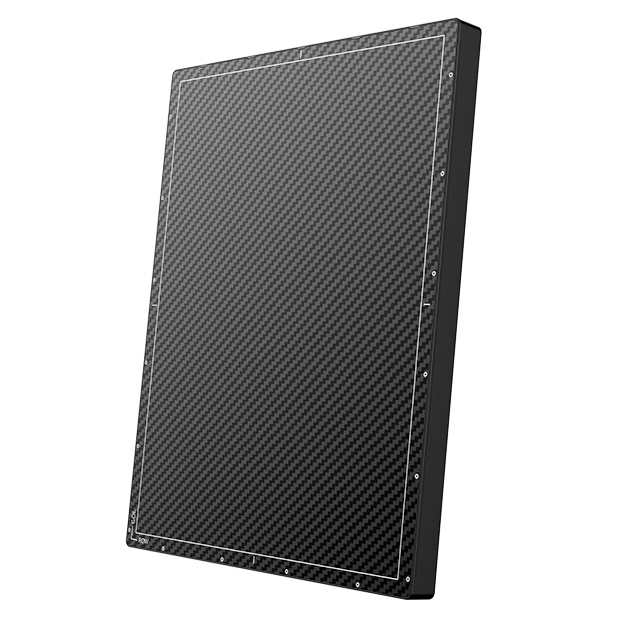

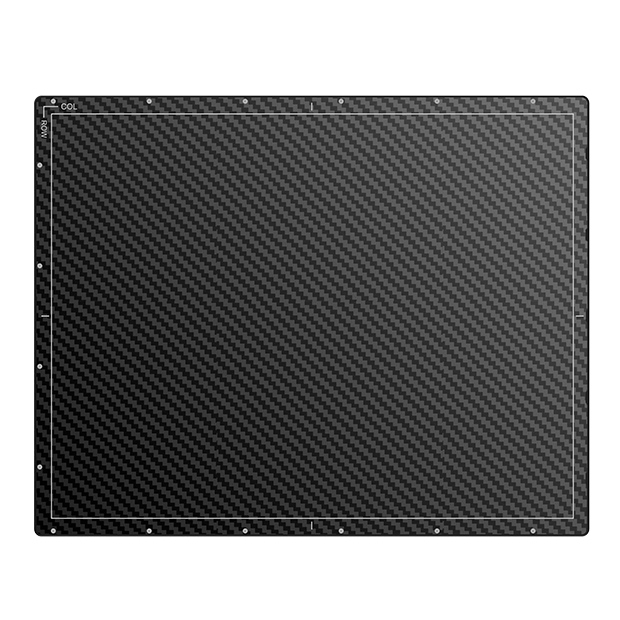

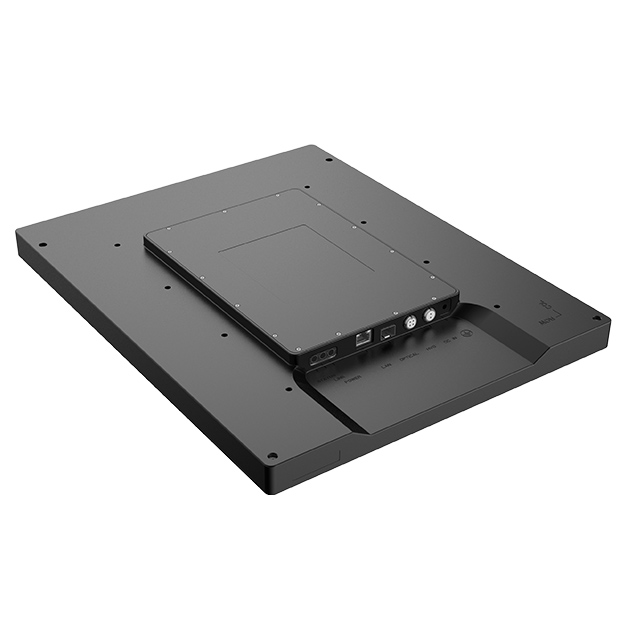

Jupi 1216X
12×16-inch Dynamic Flat Panel Detector
Jupi 1216X is new generation FPD developed with innovative IGZO sensor technology for real-time imaging. The 12×16-inch low noise IGZO image sensor has direct deposition CsI, which provides excellent low-dose imaging at frame rates up to 200 fps. When integrated into a fixed or mobile C-arm fluoroscopic X-ray system, it is the optimal choice for interventional procedures in cardiac, neuro and general angiography.
Features
    • Innovative IGZO image sensor provides low noise, high SNR with an extended dynamic range
    • Extremely low clinical dose at high DQE
    • Less than 2.5% first frame lag
    • Switchable gain settings for variable sensitivity
    • High frame rate capable at 50 fps in full resolution, 100 fps in 2×2, and 200 fps in 4×4
    • Multiple modes with selectable field-of-views
    • Support optical 10GigE interface
Technical Specifications
