Technical Parameters
| Venu 1717XV | |||
| Detector Technology | Amorphous Silicon | Spatial Resolution (lp/mm) | 3.6 |
| Scintillator | CsI | Operating Temperature (℃) | 5~35 |
| Pixel Pitch (μm) | 139 | Storage & Transport Temperature with Package (℃) | -10~55 |
| Pixel Matrix | 2912 × 2912 | Operating Humidity （% RH） | 30~80 (Non-Condensing) |
| Active Area (mm²) | 405 × 405 | Storage & Transport Humidity with Package （% RH） | 10~90 (Non-Condensing) |
| AD Conversion (bit) | 16 | Dimension (mm) | 460 × 460 × 15 |
| Preview Image Time (s) | 3 | Weight (kg) | 4 |
| Full Image Time (s) | 5 | Data Interface | Ethernet |
| Trigger Mode | AED / Prep / Software | Power Dissipation (W) | 25 |
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.

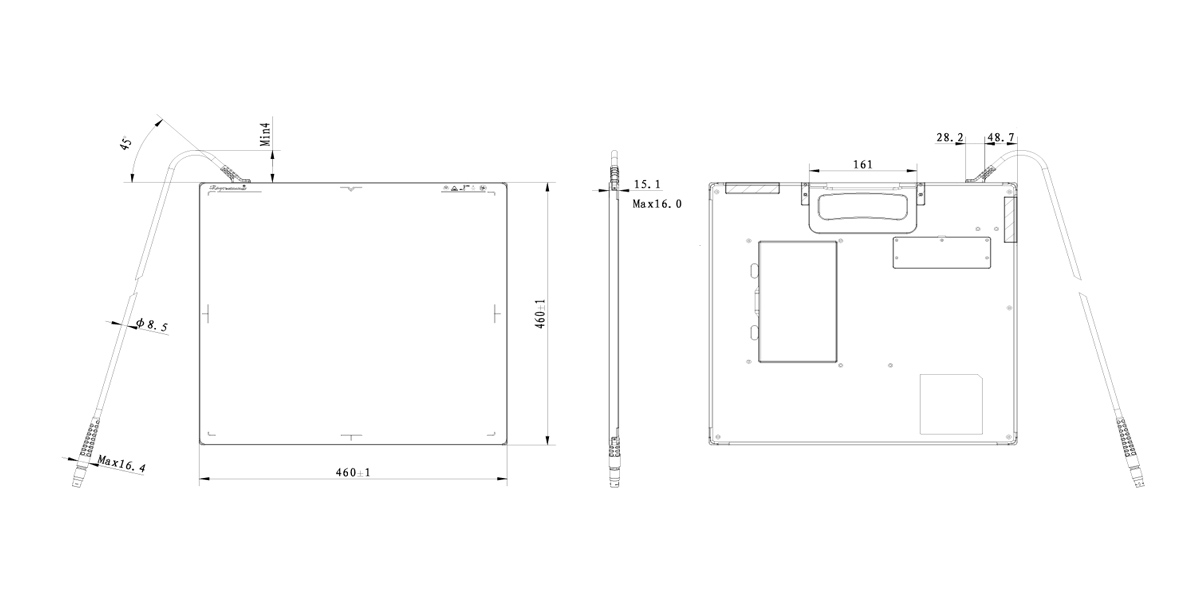

Dimensions
