Technical Parameters
| Mars 1717V | |||
| Detector Technology | Amorphous Silicon | Full Image Time (s) | 5 |
| Scintillator | CsI | Dimension (mm³) | 460 x 460 x 15 |
| Active Area (inch) | 17 × 17 | Weight (kg) | 4.6 |
| Pixel Matrix | 3072 × 3072 | Static Loading (kg) | 150 kg |
| Pixel Pitch (μm) | 139 | Center Loading | 135kg @ 4 cm |
| Spatial Resolution (lp/mm) | 3.6 | Ingress Protection | IPX1 |
| AD Conversion (bit) | 16 | Operating Temperature (℃) | 5~35 |
| Battery Autonomy (h) | 8 | Storage & Transport Temperature with Package(℃) |
-20~55 |
| WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac |
Operating Humidity（% RH） | 10~90 (Non-Condensing) |
| Trigger Mode | AED (Optional) / Software | Storage & Transport Humidity with Package （% RH） | 5~95 (Non-Condensing) |
|
Internal Image Storage |
200 full size images | ||
* This document cannot be considered to be a contractual specification.
The information given herein may be modified without notice.

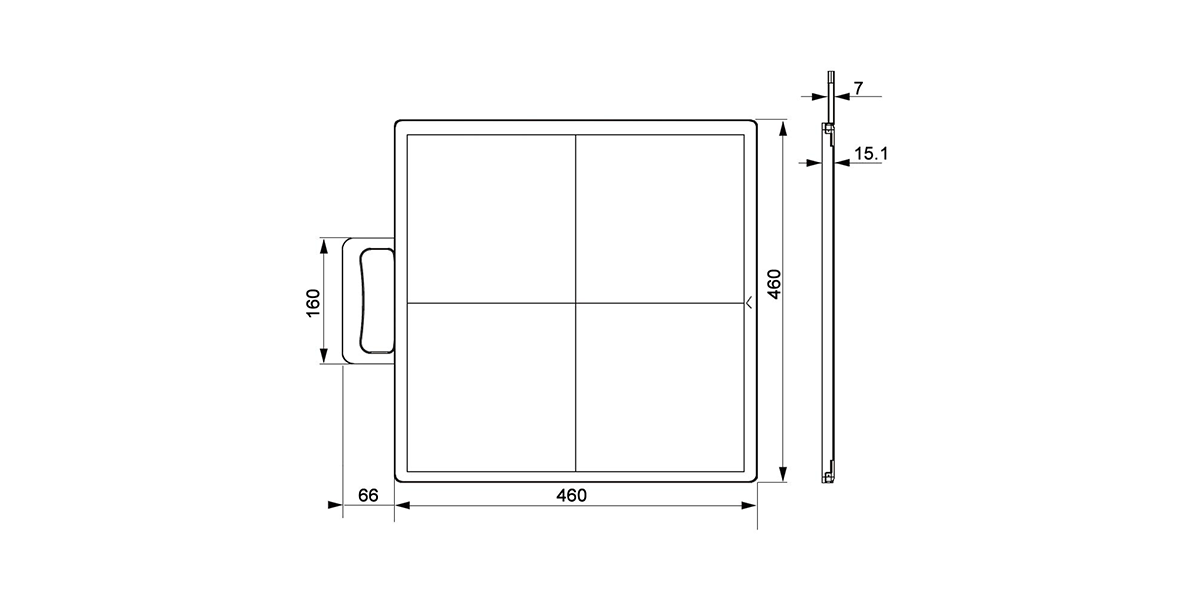

Dimensions
