Technical Parameters
Mercu 1616TE
Detector Technology   Amorphous Silicon  Data Interface GigE
Scintillator DRZ- High / DRZ-Plus Operating Temperature (℃) 10~35
Active Area (inch) 16 × 16 Operating Humidity (% RH)   30~70 (Non-Condensing)
Pixel Matrix 2048 × 2048 Storage & Transport Temperature with Package (℃) -10~55
Pixel Pitch (μm)  200 Storage & Transport Humidity with Package (% RH)   10~95 (Non-Condensing)
AD Conversion (bit) 16 Dimension (mm) 500 × 560 × 22
Frame Rate (fps) 7.5 (1 × 1)
15 (2 × 2)
30 (4 × 4)
Weight (kg) 7.5



* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

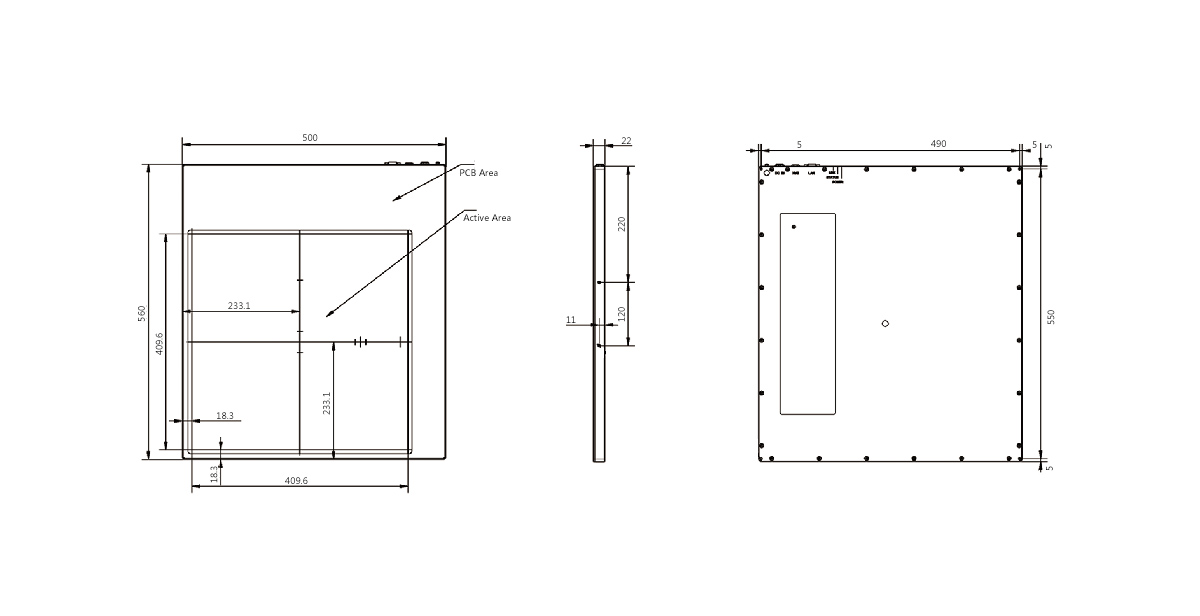

Dimensions
