Providing a Total Solution for all your X-Ray System needs

Technical Parameters
Jupi 1212X
Detector Technology   IGZO Data Interface 10GigE / CXP
Scintillator CsI Operating Temperature (℃) 10~35
Active Area (inch) 12 × 12 Operating Humidity (% RH) 20~90(Non-Condensing)
Pixel Matrix 2048 × 2048 Storage Temperature (℃) -10~55
Pixel Pitch (μm)  150 Storage & Transport Humidity with Package (% RH) 10~90(Non-Condensing)
Limiting Resolution (lp/mm) 3.3 Dimensions (mm) 337 × 332 × 39
AD Conversion (bit) 16 Weight (kg) 5.5
Frame Rate (fps)

50 (1×1)
100 (2×2)

Power Dissipation (W) 25



* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.

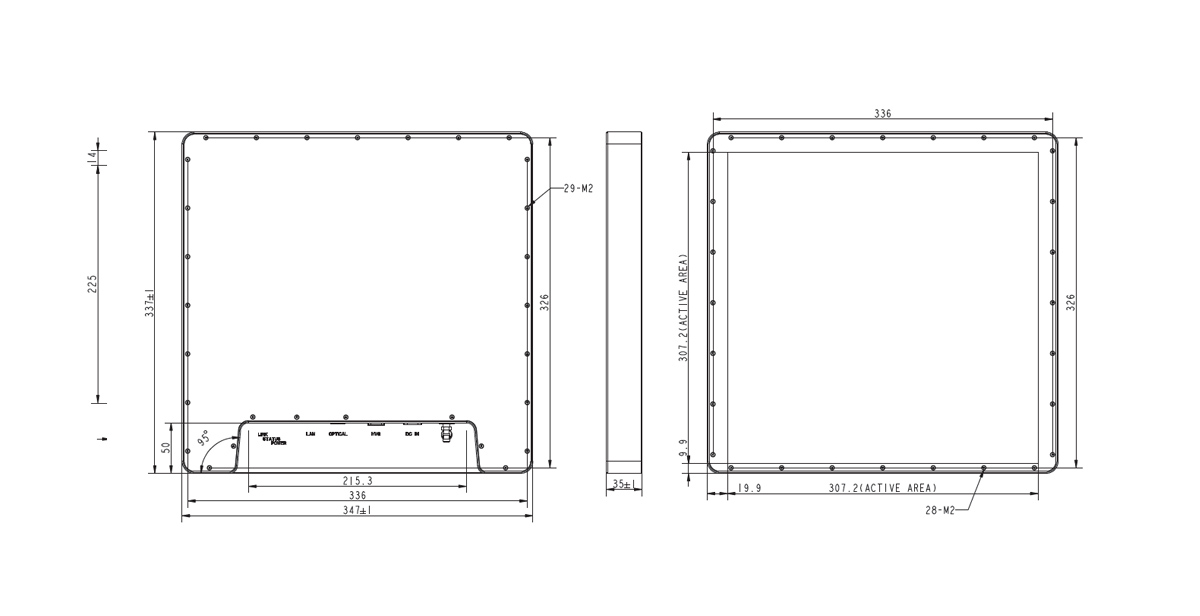

Dimensions
